When land needs to be stabilized against erosion, landslides, or uneven terrain, a retaining wall becomes a crucial solution. A retaining wall is a rigid structure designed to hold back soil and provide lateral support wherever there is a difference in ground elevation. From highways to industrial sites, retaining walls play a vital role in ensuring the safety, stability, and usability of land.
Why Are Retaining Walls Important?
Without proper support, soil on slopes or elevated land can collapse due to gravity, water pressure, or vibrations from construction and traffic. Retaining walls:
- Prevent soil erosion and landslides.
- Support vertical or near-vertical grade changes.
- Create usable flat spaces on sloping ground.
- Manage surface runoff and groundwater effectively.
- Add functional and aesthetic value to landscapes.
Types of Retaining Walls
Different soil conditions, load requirements, and space availability call for different retaining wall designs. Here’s a detailed look at the major types:
Gravity Retaining Wall
- How it works: Uses its own weight to resist the pressure of soil. Built with stone, precast concrete blocks, or brick masonry.
- Height capacity: Usually effective for walls up to 3 meters high.
- Best for: Landscaping, garden walls, or small property boundaries.
- Advantages: Simple design, easy installation, long-lasting, with minimal maintenance.
Cantilever Retaining Wall
- How it works: Made of reinforced concrete with a thin vertical stem and a base slab divided into a heel (under the retained soil) and a toe (in front).
- Height capacity: Can support walls up to 6–8 meters tall.
- Best for: Large infrastructure projects like highways and bridges.
- Advantages: Uses less concrete compared to gravity walls, economical for medium heights, stronger design to resist lateral earth pressure.
Counterfort Retaining Wall
- How it works: Similar to cantilever walls but reinforced with thin vertical webs (counterforts) on the back side of the wall. These act like triangular buttresses, reducing bending stress.
- Height capacity: Suitable for very tall retaining structures (above 8 meters).
- Best for: Large dams, river embankments, and big industrial or highway projects.
- Advantages: Cost-effective for tall walls, requires less concrete and reinforcement compared to an oversized cantilever wall.
Anchored Retaining Wall
- How it works: Designed with cables or rods anchored deep into the soil or rock behind the wall. These anchors provide additional strength to hold heavy loads.
- Height capacity: Suitable for very tall walls and areas with high soil pressure.
- Best for: Urban sites with limited space, deep basements, or areas with weak soil conditions.
- Advantages: Provides strong stability without requiring a large footprint, making it ideal where space is restricted.
Sheet Pile Retaining Wall
- How it works: Consists of thin precast concrete, steel, or wooden sheets driven vertically into the ground. The depth of embedment resists soil pressure.
- Height capacity: Suitable for smaller heights, but can be reinforced for deeper applications.
- Best for: Waterfront structures, riverbank protection, or temporary construction.
- Advantages: Lightweight, quick installation, minimal excavation needed.
Applications of Retaining Walls
Retaining walls are used across industries—from small residential landscaping to massive infrastructure projects. Here are the main applications in detail:
Highway and Railway Embankments
- Roads and railway lines often pass through hilly or uneven terrain. Retaining walls hold back soil to create stable platforms.
- They prevent landslides during heavy rains and provide long-term stability.
- Example: Precast retaining walls by Trilok Infratech are widely used in National Highway projects for quick and durable embankment solutions.
Industrial and Commercial Developments
- Industrial plants, warehouses, and commercial complexes often require leveling of uneven land.
- Retaining walls allow the creation of flat platforms for heavy structures, parking areas, and storage yards.
- They also support deep basement constructions in malls and high-rise buildings.
Residential and Urban Projects
- In cities, retaining walls are used to support basements, underground parking, boundary walls, and garden landscaping.
- They help maximize land use in hilly or sloping urban areas.
- Precast walls add both functionality and aesthetics to residential colonies.
Water Management & Riverbank Protection
- Retaining walls prevent soil erosion along rivers, canals, and coastal areas.
- They are also used in dams, reservoirs, and irrigation projects to control water flow.
- Precast FT Flumes can be combined with retaining walls for complete water management solutions.
Agriculture & Land Development
- In hilly regions, farmers use retaining walls for terracing, making land cultivable.
- These walls stop fertile soil from being washed away during monsoon rains.
- This ensures sustainable agriculture and long-term productivity.
Landscaping and Public Spaces
- Retaining walls are common in parks, gardens, stadiums, and open public areas.
- They help create different levels, add seating spaces, and provide visual appeal.
- Precast solutions make such projects cost-effective and quick to execute.

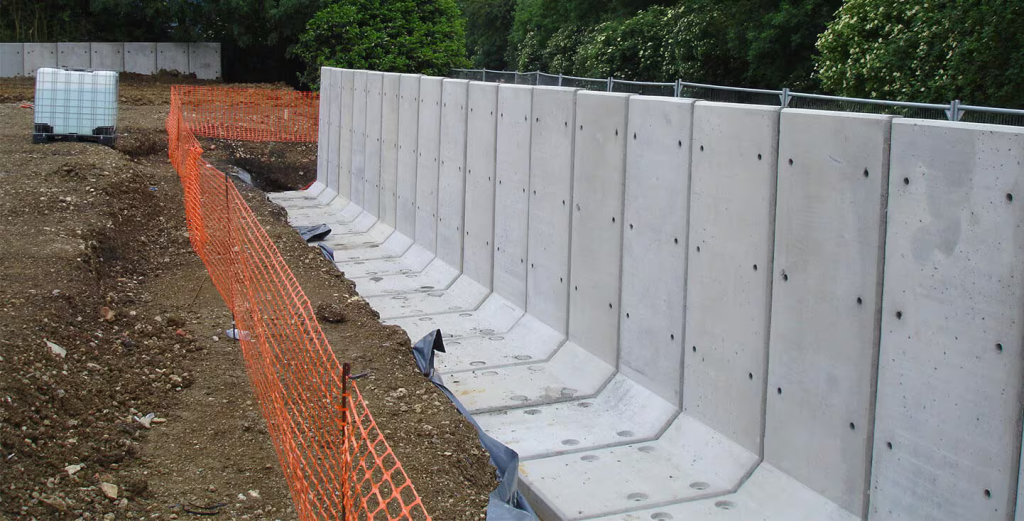

Why Choose Precast Retaining Walls from Trilok Infratech?
Unlike conventional cast-in-situ walls, Trilok Infratech’s precast retaining walls are manufactured in a controlled environment, ensuring high quality and uniform strength.
- Faster construction and installation.
- Cost savings on labor and time.
- High durability with minimal maintenance.
- Flexibility in design for highways, industries, and urban projects.
Our retaining walls are widely used in highway projects, industrial developments, and large-scale infrastructure works across India. With advanced precast technology, Trilok Infratech ensures reliable and sustainable construction solutions.
