How Precast Box Culverts Improve Infrastructure?

What is a Precast Box Culvert?

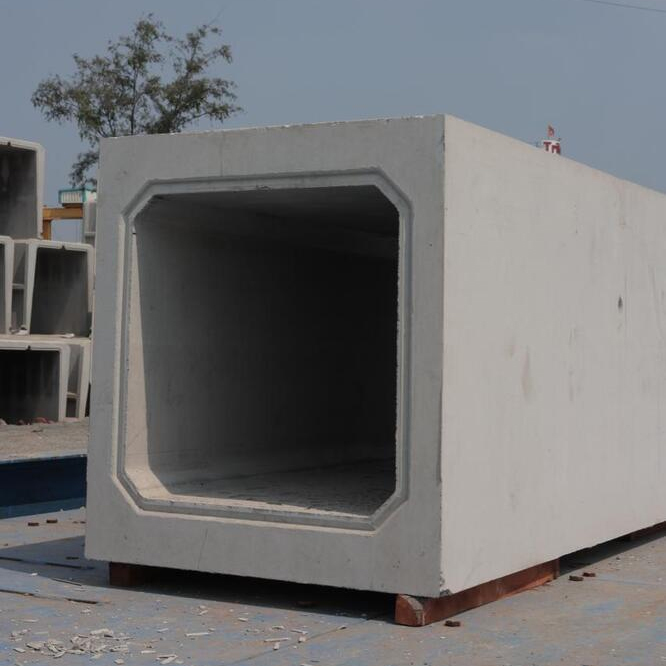

A box culvert is a reinforced concrete rectangular (or box-shaped) structure used to convey water, drainage, utilities, or small traffic under roads/embankments.

Precast box culverts are manufactured in a factory-controlled environment, cured and finished, then transported to the site and installed as modular units.

Why choose Precast instead of cast-in-situ?

• Factory Quality Control – Consistent concrete strength, accurate dimensions, better finish.
• Parallel Execution – While the site works (excavation, foundation) proceeds, culverts are cast in the factory.
• Faster on-site Installation – Lowering traffic disruption and project schedule.
• Less on-site Labor & Fewer Hazards – Minimal shuttering/formwork, reduced wet-concrete handling.
• Modularity & Repeatability – Standard units for mass deployment, easier replacement, and maintenance.

How are precast box culverts manufactured?

• Design & drawings – Select module size, wall/thickness, reinforcement, lifting points, joint detail, and cover type.
• Formwork & reinforcement – Accurate steel cages, chairs, and spacers for concrete cover.
• Concrete mix – Factory mixes (e.g., high-performance mixes for heavy-duty culverts) with additives for workability and durability.
• Casting – Poured into forms; for prestressed units, strands are tensioned before/after casting as required.
• Curing – Controlled curing (water/steam) to reach the target strength quickly and uniformly.
• Demoulding & finishing – Dimensional checks, lifting anchors fixed, joint grooves formed, covers/gratings prepared.
• Storage & dispatch – Arranged to avoid damage; load plans for transport and lifting defined.

How do they speed up Infrastructure Delivery?

Parallelisation of work

Factory casting happens while site excavation, foundation, and approach work continue. This eliminates waiting for in-situ curing cycles.

Reduced on-site construction time

Typical placement of a precast unit (once the foundation is prepared) can be completed in hours; multiple units can be placed in a single day with adequate crane capacity, versus several days/weeks for shuttering, pouring, and curing a cast-in-situ section.

Minimized traffic closures

Faster installations mean shorter road closures (night or off-peak windows), reducing economic impact and permitting delays.

Predictable schedules

Factory production is less weather-sensitive; project managers can plan exact delivery windows and staffing.

Simplified logistics for repeat projects

For long runs (many culvert units), production lines and standardized handling accelerate overall progress through repetition.

How Do They Improve Safety?

Worker safety on site

• Less formwork, scaffolding, and on-site concrete work reduces fall and handling hazards.
• Fewer personnel are required near heavy traffic during critical operations.

Traffic & Public safety

• Shorter closure times reduce exposure of traffic and workers to risk.
• Finished precast units are checked before arrival, lowering the risk of structural defects being discovered in open traffic.

Structural Reliability

• Controlled mix, curing, and reinforcement placement increase concrete durability and reduce defects (cracking, honeycombing) that can compromise safety.

Controlled Lifting & Handling

• Predefined lifting points, certified slings, and scheduled crane lifts make handling safer than ad-hoc on-site lifting solutions.

Reduced environmental hazards

• Less site runoff, less dust, and fewer on-site chemical exposures (admixtures, curing agents) reduce environmental and worker health hazards.

Hydraulic & Structural Design Considerations

Hydraulic Design

• Sizing for design storm / Q: Compute flow using continuity and open-channel formulas (e.g., Manning’s equation).
• Cause scour: Provide stilling, riprap, or aprons where needed.
• Debris & Sediment: Design for access and de-silting; consider trash racks or larger openings upstream when sediment load is high.

Structural Design

• Loads: Dead loads (self-weight), backfill surcharge, live loads (traffic, wheel loads), hydrostatic pressures, seismic loads, and construction loads.
• Checks: Bending moment, shear, serviceability (crack control), uplift (buoyancy if groundwater is high), bearing pressure under base, and joint shear capacity.
• Reinforcement & section thickness: Sized for bending/shear; prestressing can reduce the required thickness for long spans.
• Joint design: Water tightness via gaskets, hydrophilic water stops, or grout; ensure flexural continuity or bearings as per movement expectations.

Geotechnical

• Foundations: Design PCC bedding or reinforced concrete foundation slab, depending on subgrade bearing capacity and groundwater.
• Settlement & Differential Settlement: Account for compressible layers; use improved subgrade or piles if needed.
• Backfill Compaction: Staged compaction to avoid lateral displacement or excessive loads on the culvert.

Installation process

1. Site Investigation & Set-Out – Confirm levels, Q, alignments, and crane positions.
2. Excavate Trench – To design depth with stable side slopes or shoring if required.
3. Foundation Preparation – Compact subgrade; lay levelling bed (e.g., lean concrete/PCC) of specified thickness. For heavy installations, provide a full PCC base or reinforced foundation.
4. Place first unit – Use spreader beam to avoid twisting; hook and lift per manufacturer’s drawing. Ensure correct orientation and invert level.
5. Jointing – Engage tongue-and-groove; place gasket/seal; apply grout where specified; use temporary bracing.
6. Place Subsequent Units – Maintain alignment, levels, and joint integrity. Check with the levels and laser.
7. Covers/Slab & Approach works – Install covers/gutters where required; place wearing course or pavement above as per design.
8. Backfill with controlled compaction – Use specified fill materials, compact in layers to the required density. Avoid heavy compaction equipment over the culvert until the minimum cover is achieved.
9. Inlet/Outlet protection – Install aprons, riprap, or energy dissipation structures.
10. Final Inspection & Commissioning – Joint checks, water tightness test if required, and de-silt.

Understand the installation process thoroughly from HERE

Quality control & testing

Factory QA

• Concrete mix design verification, cube/cylinder strength tests at 7/28 days.
• Dimensional tolerances check (length, width, height, and lifting insert locations).
• Reinforcement placement, inspection, and prestress strand tension tests are used when.

On-Site QA

• Bedding level & evenness checks.
• Joint integrity and sealant application checked.
• Lifting hardware certification & lift plan audit.
• Post-installation checks for alignment, leak paths, and final compaction densities.

Maintenance & Lifecycle Management

• Periodic Inspection: Joints, inlet/outlet scouring, internal abrasion, cracks.
• De-silting Schedule: Plan intervals based on sediment load; easy with precast access.
• Repair Strategy: Replace a single modular unit if damaged (advantage of precast).
• Expected Life: Properly designed/installed precast culverts can last multiple decades; life depends on exposure (chemical, saline), abrasion, and maintenance.

Cost & Procurement Trade-offs

• Initial cost: Precast often has a higher unit cost than simple cast-in-situ for one-off small structures, but saves on labour and time.
• Lifecycle cost: Lower due to higher quality, reduced maintenance, and faster project completion (which itself saves indirect costs).
• Logistics cost: Transport and crane costs can be significant for very large segments or remote sites. Evaluate transport route, lifting capacities, and permits before committing.

Limitations & when NOT to use precast

• Restricted site access / narrow roads where transport of large segments is impractical.
• Very long, continuous underground structures with complex curves may be suited for better cast-in-situ or in-situ lining.
• Sites with very poor ground where piling or in-situ solutions are necessary unless precast is adapted to sit on piles.
• Complex geometry or unique on-site forming needs – When custom shapes are needed for very specific architectural or hydraulic features.

Practical Decision Checklist

Choose precast box culverts when:

• You need a fast schedule and minimal traffic disruption.
• The site allows crane and truck access.
• Quality and durability are priorities (heavy traffic, industrial load).
• Repeatable modular units will be used throughout a project.

Consider cast-in-situ if:

• Transport/handling impossible, or geometry is highly irregular, or continuous monolithic lining is required.

Example

Project: 2-lane highway culvert replacement.

• Cast-in-situ option: Requires closure of a lane for 3–4 weeks for shuttering, concreting, curing, and reinstatement.
• Precast option: Factory cast while site prep continues; culvert sections installed over 2–3 nights (pre-planned lane closures) and road reopened same week, drastically reducing closure period and social/economic impacts.

Concluding Practical Notes

• Coordination is key: Early involvement of the precast manufacturer in design planning (to plan units, lifts, transport).
• Soil and hydraulic studies must be complete before finalizing size/height.
• Joint and bedding details are critical for water-tightness and long-term performance — insist on the manufacturer’s joint specifications.
• Safety planning for lifts and traffic management saves cost and prevents accidents.
