U-shape drain
T25 U Shape Drain
Heavy duty
Heavy-duty precast RCC drain channel engineered for high-volume stormwater discharge in roads, highways, and industrial zones.
- 01 Size range
- 300×300 mm to 1200×1200 mm
- 02 Unit length L
- 2000 mm
- 03 Concrete grade
- M40
- 04 Load rating

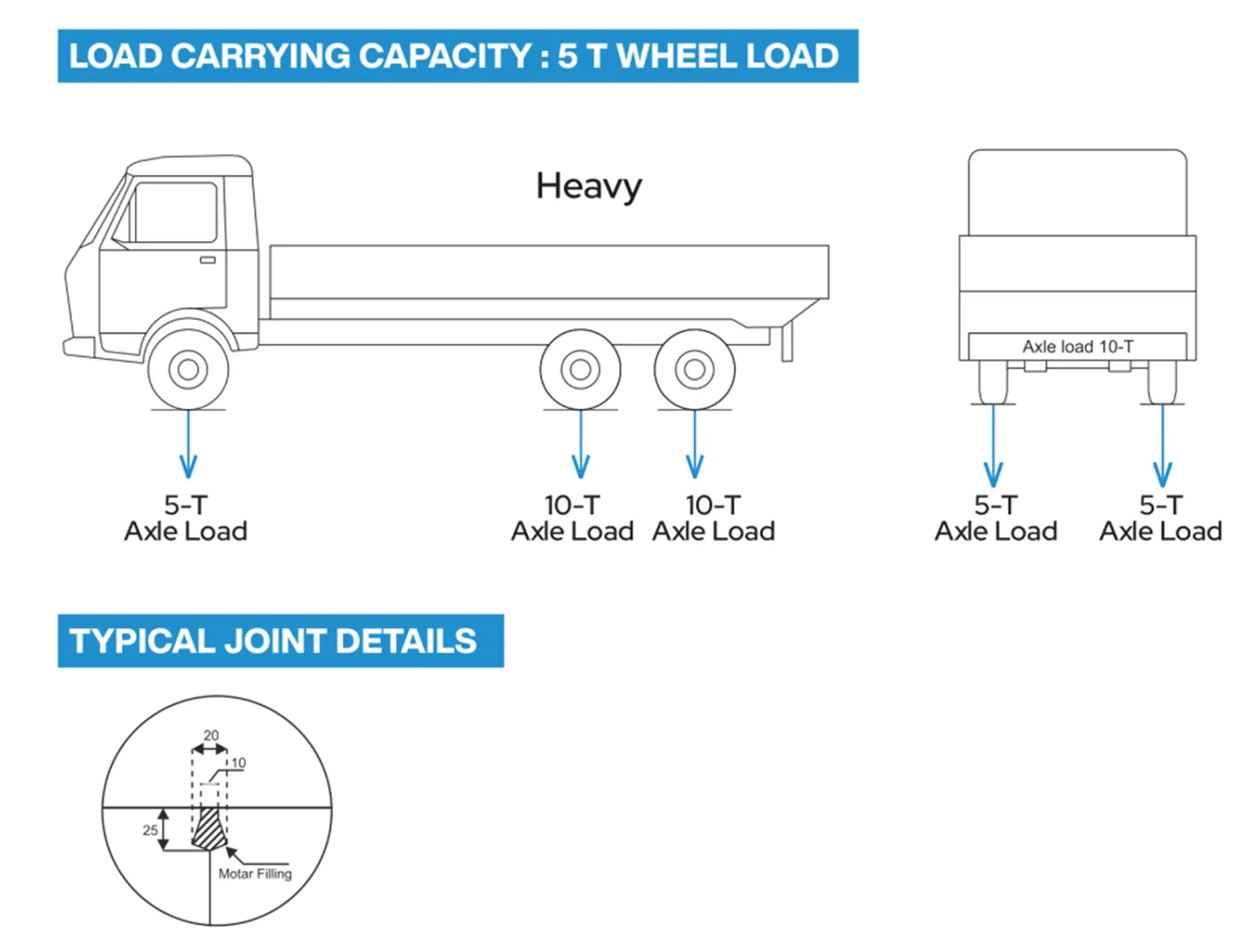

- 5 T wheel load
- 05 Standard sizes
- 06
Overview
Introducing the Heavy-Duty Precast RCC U Drain—the superior solution for modern civil infrastructure and water management.
Ideal for use in urban infrastructure, highways, and industrial sites, U-Drain systems are easy to install, require minimal maintenance, and ensure long-term reliability in managing surface water runoff.
- F/01
Durable Material
Manufactured from high-performance M40 Grade Reinforced Cement Concrete (RCC), ensuring exceptional strength and longevity under heavy loads.
- F/02
Efficient Design
The U-Shape Drain maximizes flow capacity and offers excellent self-cleaning properties, making it ideal for managing large volumes of storm water.
- F/03
Dual Application
Perfectly suited as a reliable roadside drain for surface water runoff or as a robust underground cable trench/utility duct to house power and telecommunication lines.
Configure in 3D

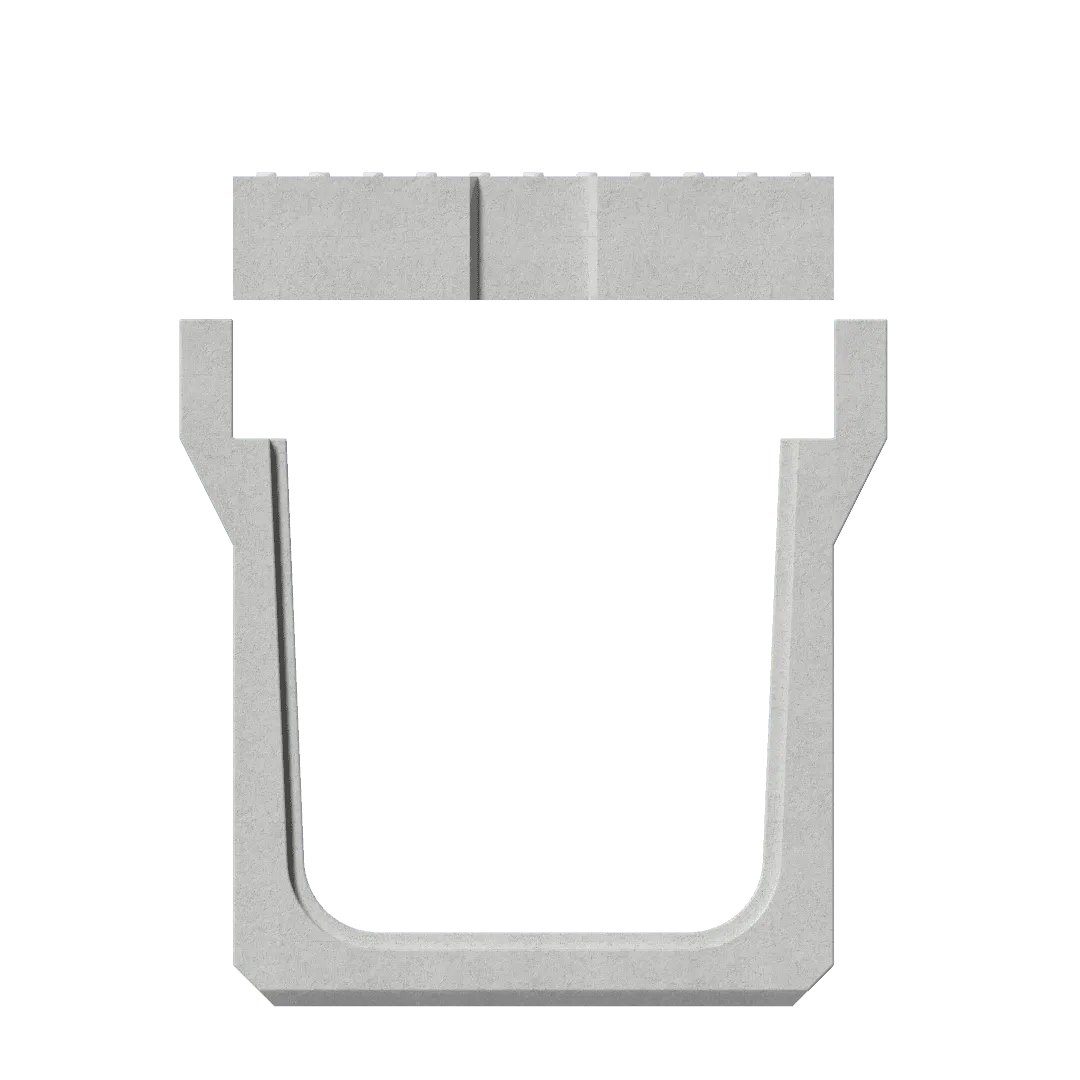

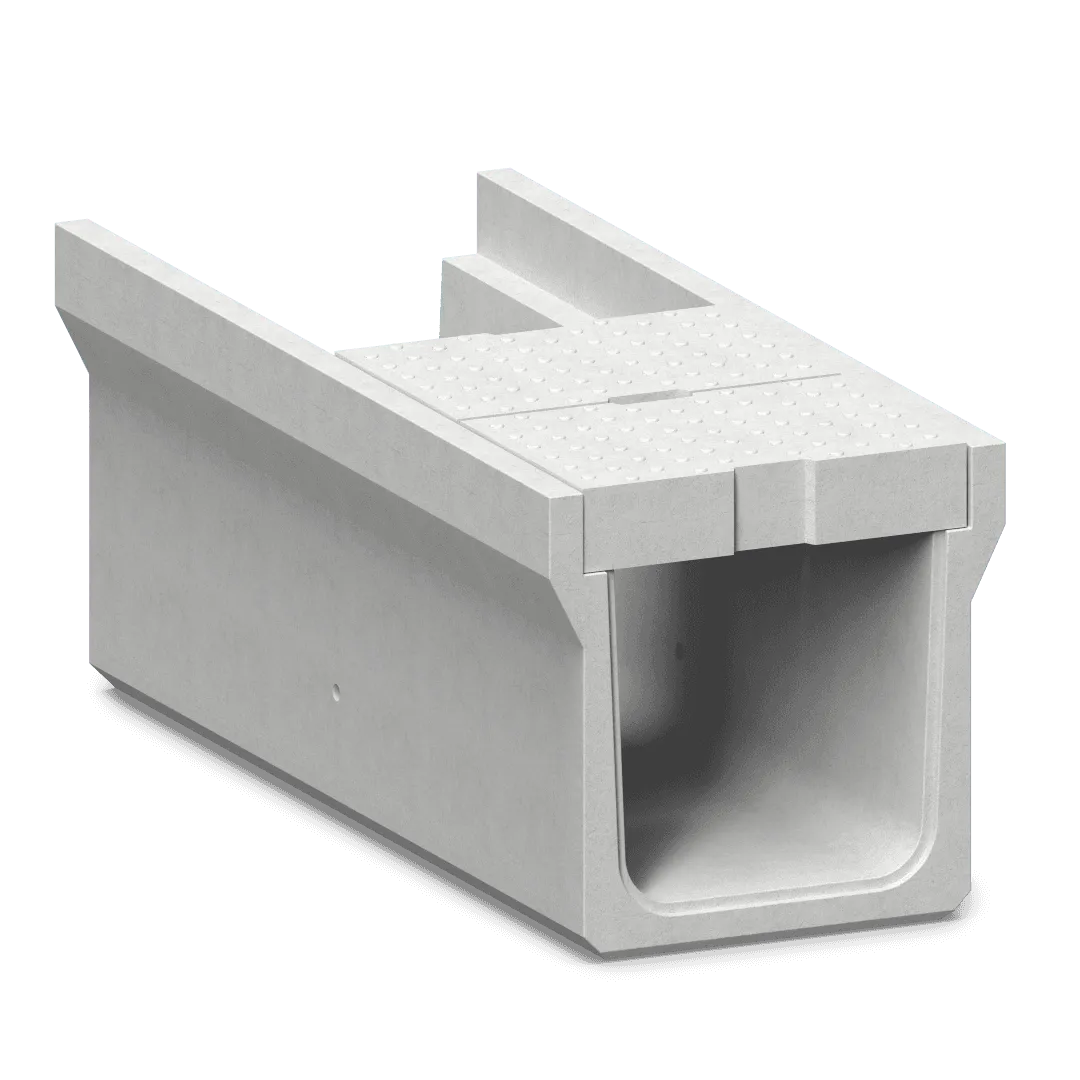

Pick a standard size, turn the T25 U Shape Drain around and add it straight to your quote.
T25
T25 U Shape Drain | Heavy
750 × 750 mm · L 2000 mm
Casting 3D model…
Dimension tables
All dimensions in mm, transcribed from the published tables. Hover or focus a column letter to see what it measures.
T/01 · 6 rows · mm
Dimensions of T25 U Shape Drain (mm)

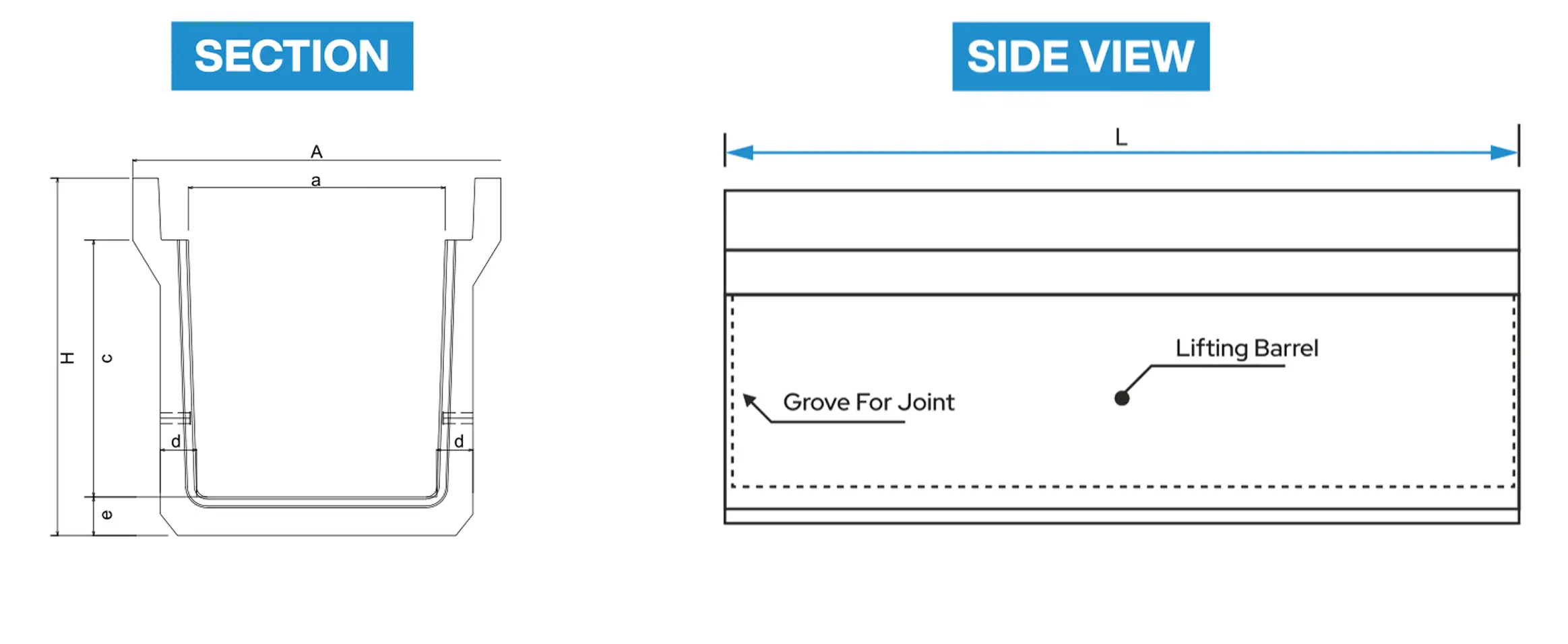

| Size (mm) a×c | Length of one precast unit (side view). | Overall outer width across the top of the unit, measured over both side walls including the top shoulders (section). | Overall outer height, from the underside of the base to the top of the side walls (section). | Clear internal width of the channel between the inner faces of the side walls, measured at the top of the inner walls just below the cover seat (section). | Clear internal depth of the channel, from the cover-seat level at the top of the inner walls down to the channel floor (section). | Side wall thickness, dimensioned horizontally near the bottom of each wall (section). | Base (floor slab) thickness, from the channel floor to the underside of the unit (section). | Actions |
|---|---|---|---|---|---|---|---|---|
| 300 × 300 | 2000 | 540 | 480 | 300 | 300 | 65 | 70 | 3D |
| 450 × 450 | 2000 | 700 | 660 | 450 | 450 | 75 | 80 | 3D |
| 600 × 600 | 2000 | 860 | 835 | 600 | 600 | 85 | 90 | 3D |
| 750 × 750 | 2000 | 1050 | 1000 | 750 | 750 | 95 | 100 | 3D |
| 900 × 900 | 2000 | 1200 | 1170 | 900 | 900 | 115 | 120 | 3D |
| 1200 × 1200 | 2000 | 1500 | 1470 | 1200 | 1200 | 120 | 120 | 3D |
Note Customized sizes available for mass quantity.
T/02 · 6 rows · mm
Dimensions of Cover (mm)

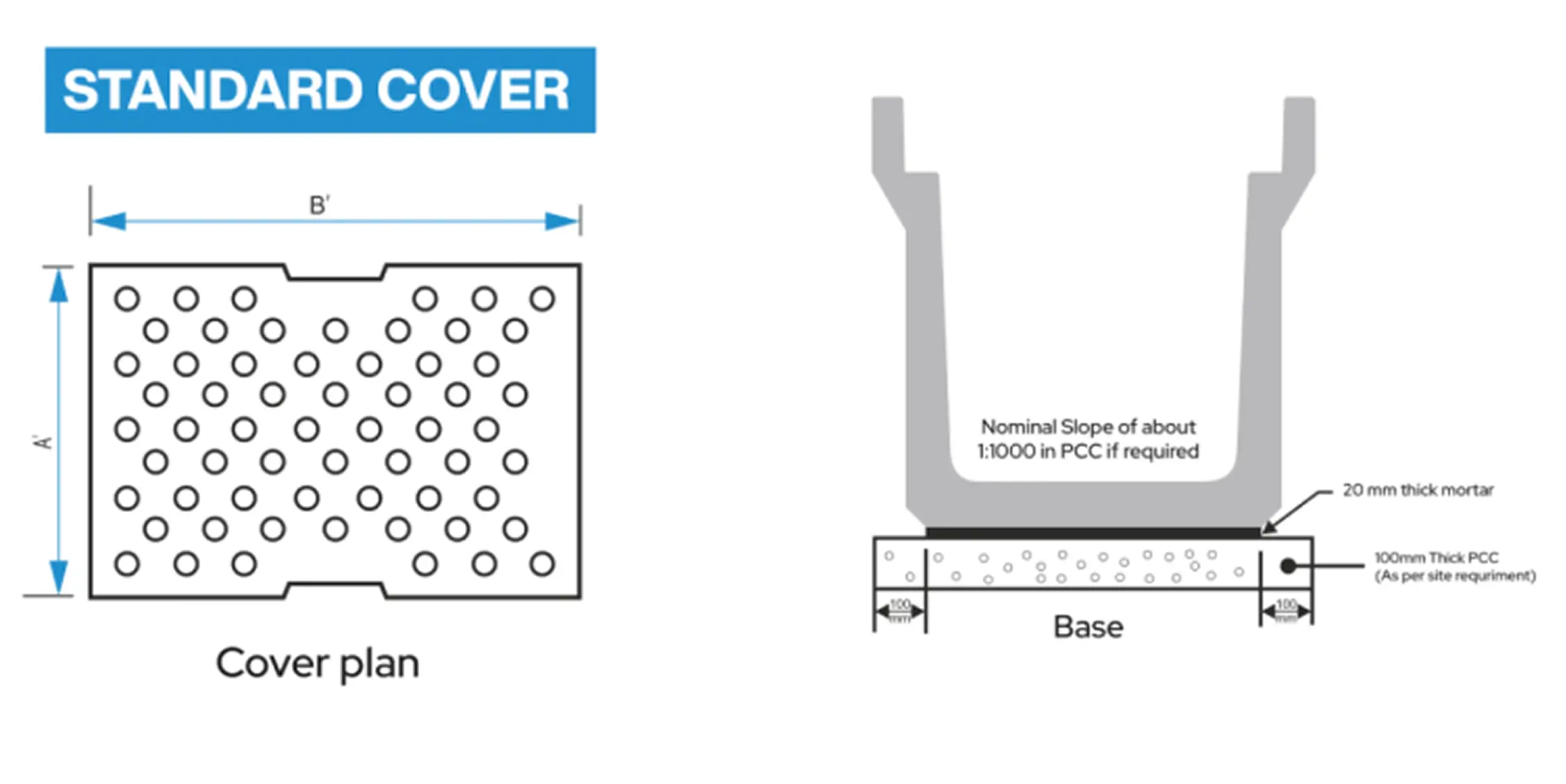

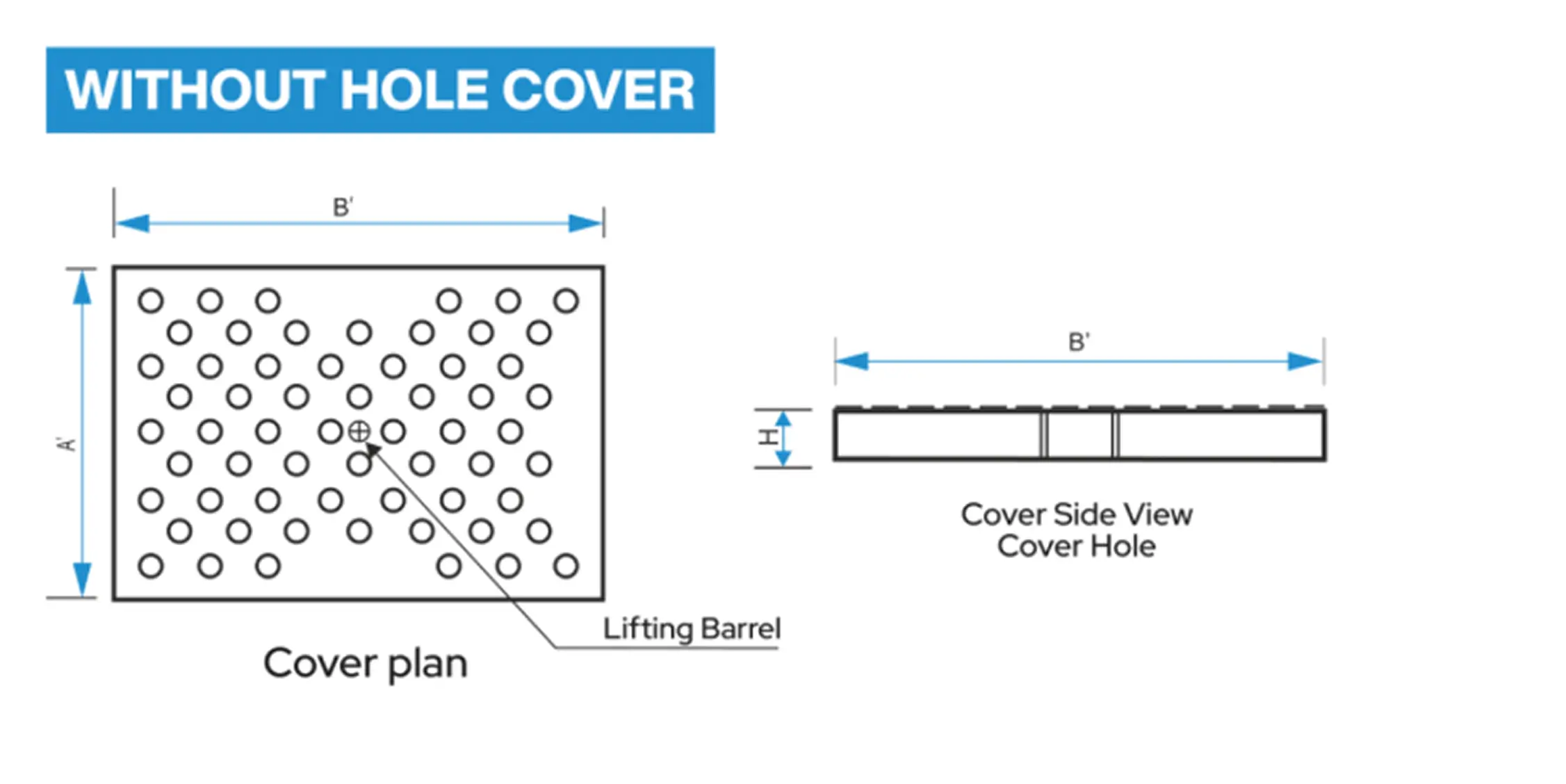

| Drain Size (mm) A' × B' | Cover A': cover dimension shown vertically on the cover plan; appears to be the cover length along the drain run (the drawing does not state the orientation). | Cover B': cover width shown on the cover plan and cover side view; appears to be the width across the drain, larger than the channel width a and smaller than the outer width A, so the cover sits in the seat at the top of the walls. | Cover H: thickness of the cover slab (H on the cover side view). |
|---|---|---|---|
| 300 × 300 | 500 | 410 | 110 |
| 450 × 450 | 500 | 565 | 130 |
| 600 × 600 | 500 | 710 | 140 |
| 750 × 750 | 500 | 890 | 145 |
| 900 × 900 | 500 | 1050 | 150 |
| 1200 × 1200 | 1000 | 1330 | 150 |
Not sure which size?
Waiting for a size
Exact first · then smallest that fits
Enter the clear opening you need.
Every standard T25 U Shape Drain size that fits will appear here, with the number of units for your run.
- U-shape drains
Technical drawings
4 sheets. Open any sheet to zoom into the details.
Our proven workflow
- Step 1
Design and planning
- Step 2
Precision machining
- Step 3
Final Inspection & dispatch
T25 — questions, answered
Size range: 300×300 mm to 1200×1200 mm. The dimension table lists 6 standard sizes (mm): 300 × 300, 450 × 450, 600 × 600, 750 × 750, 900 × 900 and 1200 × 1200.
Each precast unit is 2000 mm long (L = 2000 mm), so a 100 m run takes 50 units.
M40 grade concrete.
5 T wheel load.
Typical applications: Storm water drains; Power and telecommunication cable ducts.
