U-shape drain
T6 U Shape Drain
Light duty
Lightweight precast U drain designed for residential, commercial, and low-traffic surface water drainage applications.
- 01 Size range
- 300×300 mm to 900×900 mm
- 02 Unit length L
- 2000 mm
- 03 Standard sizes
- 05
Overview
The T6 Light Duty U Shape Drain offers a reliable and cost-effective drainage solution for smaller-scale applications where precision and speed of installation matter. Designed for residential layouts, commercial developments, and low-traffic access roads, it brings the same manufacturing quality as our heavy-duty range — in a compact, easy-to-handle form.
- F/01
Durable Material
Made with quality RCC mix for reliable performance in light to medium drainage applications.
- F/02
Efficient Design
Compact U-shape profile ensures consistent flow in residential and commercial drainage networks.
- F/03
Dual Application
Suitable for footpath drainage, parking lot runoff, and light-traffic road channels.

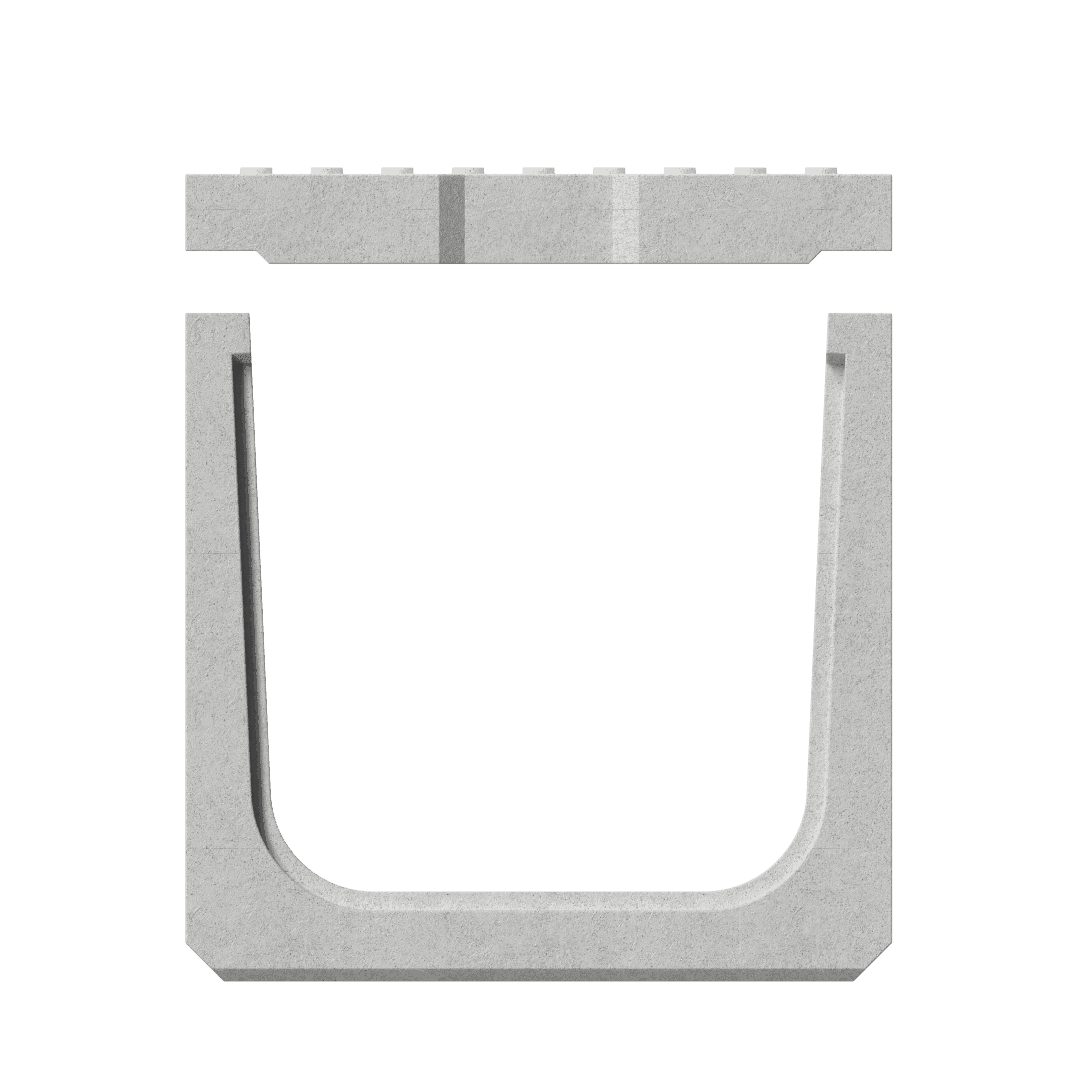

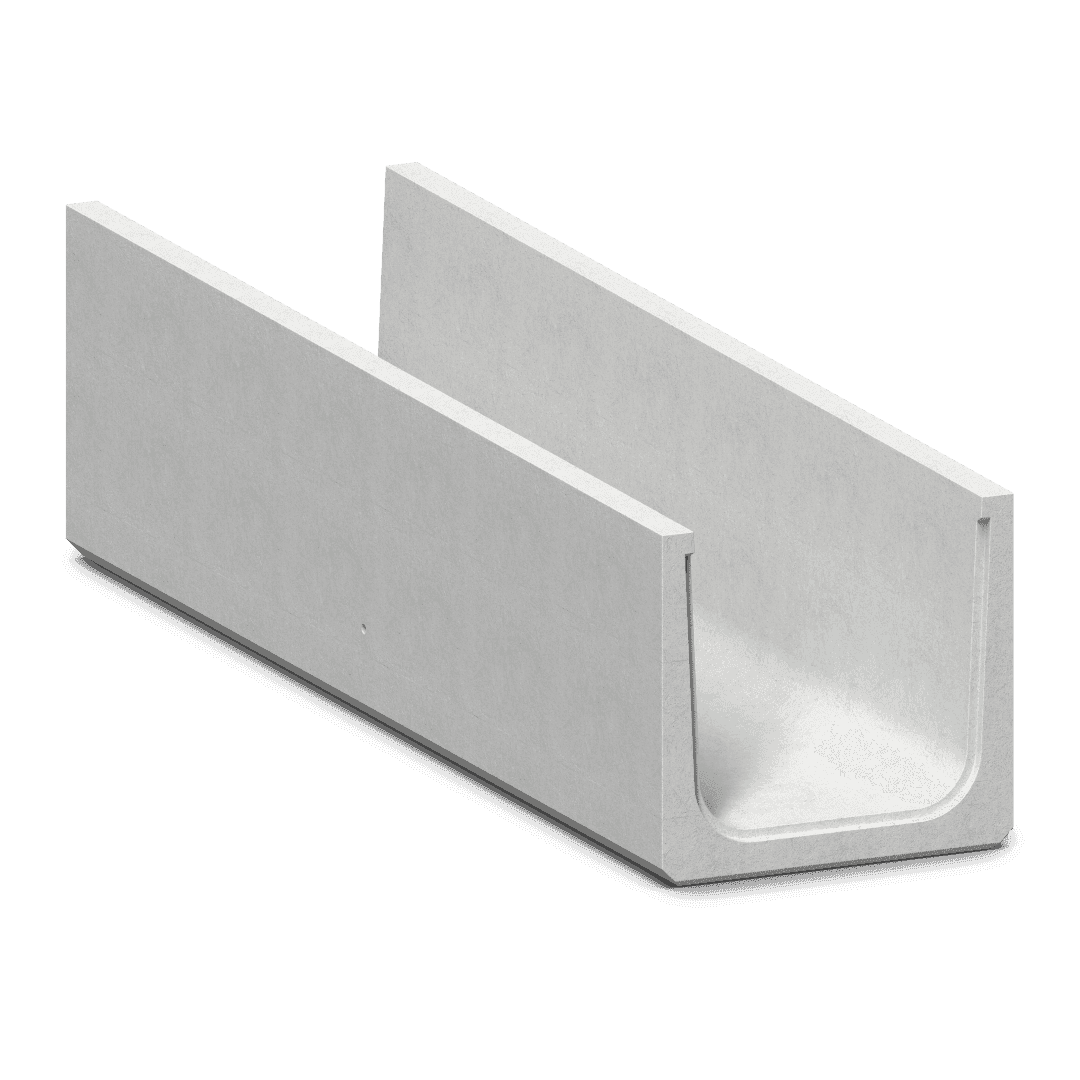

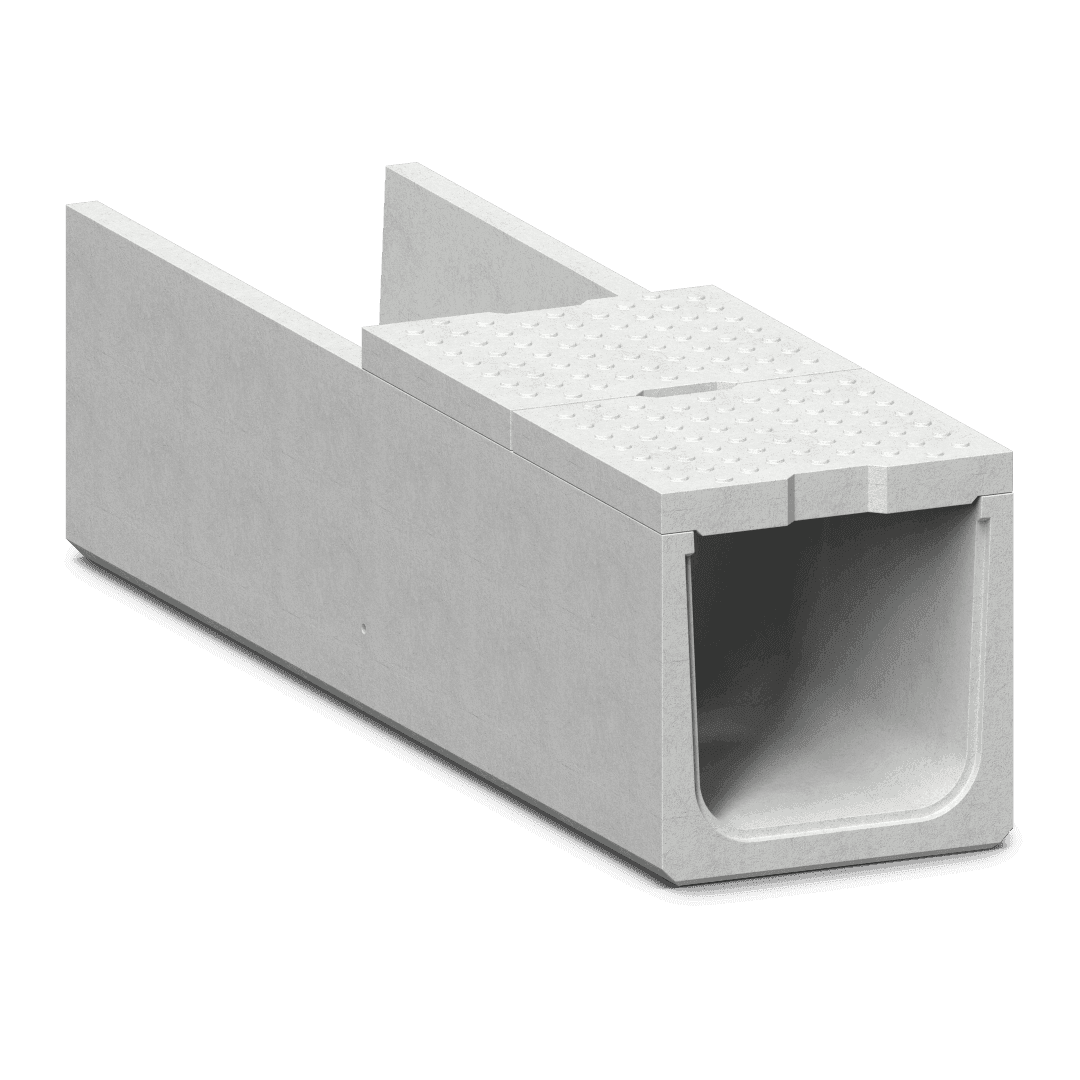

Configure in 3D
Pick a standard size, turn the T6 U Shape Drain around and add it straight to your quote.

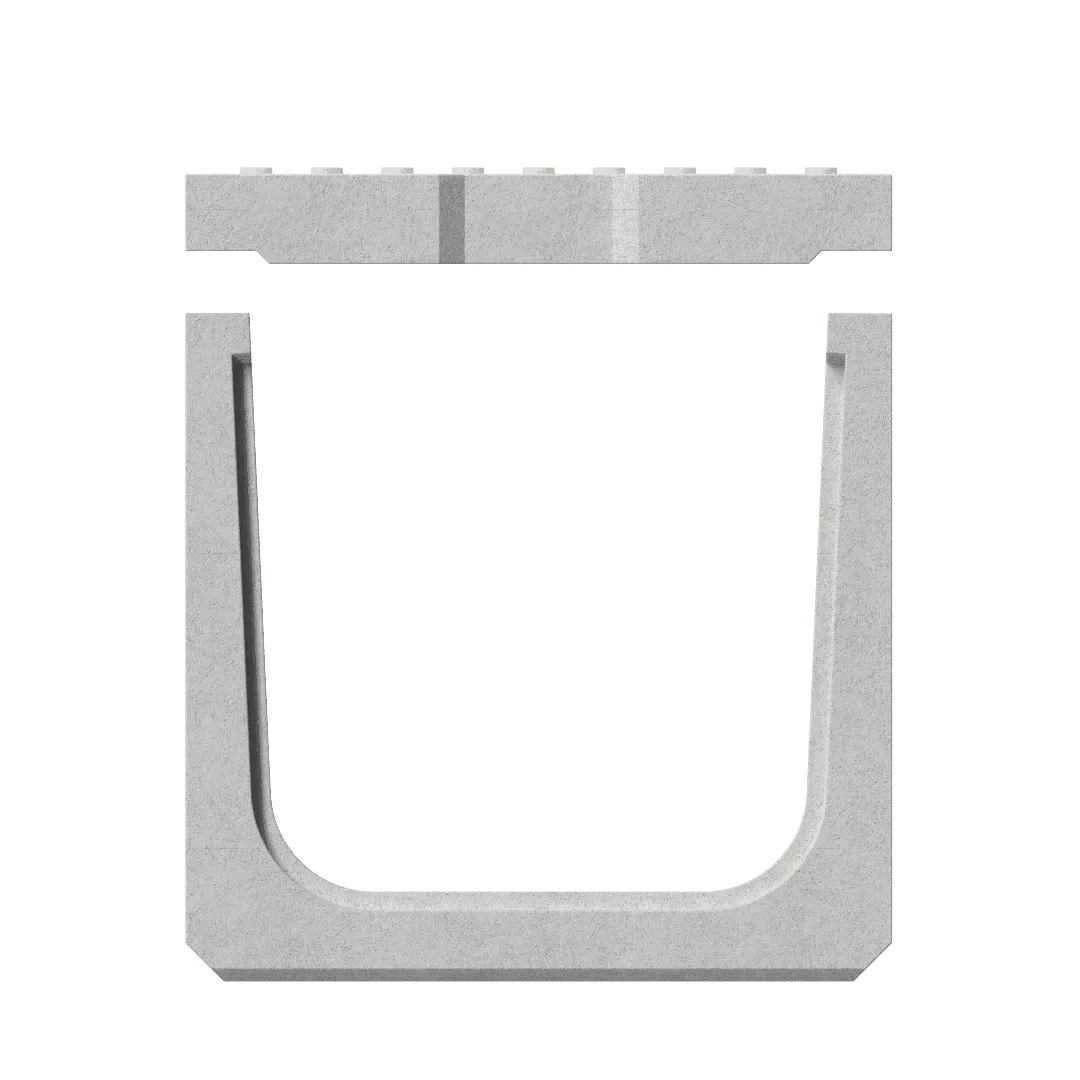

T6
T6 U Shape Drain | Light
600 × 600 mm · L 2000 mm
Casting 3D model…
Dimension tables
All dimensions in mm, transcribed from the published tables. Hover or focus a column letter to see what it measures.
T/01 · 5 rows · mm

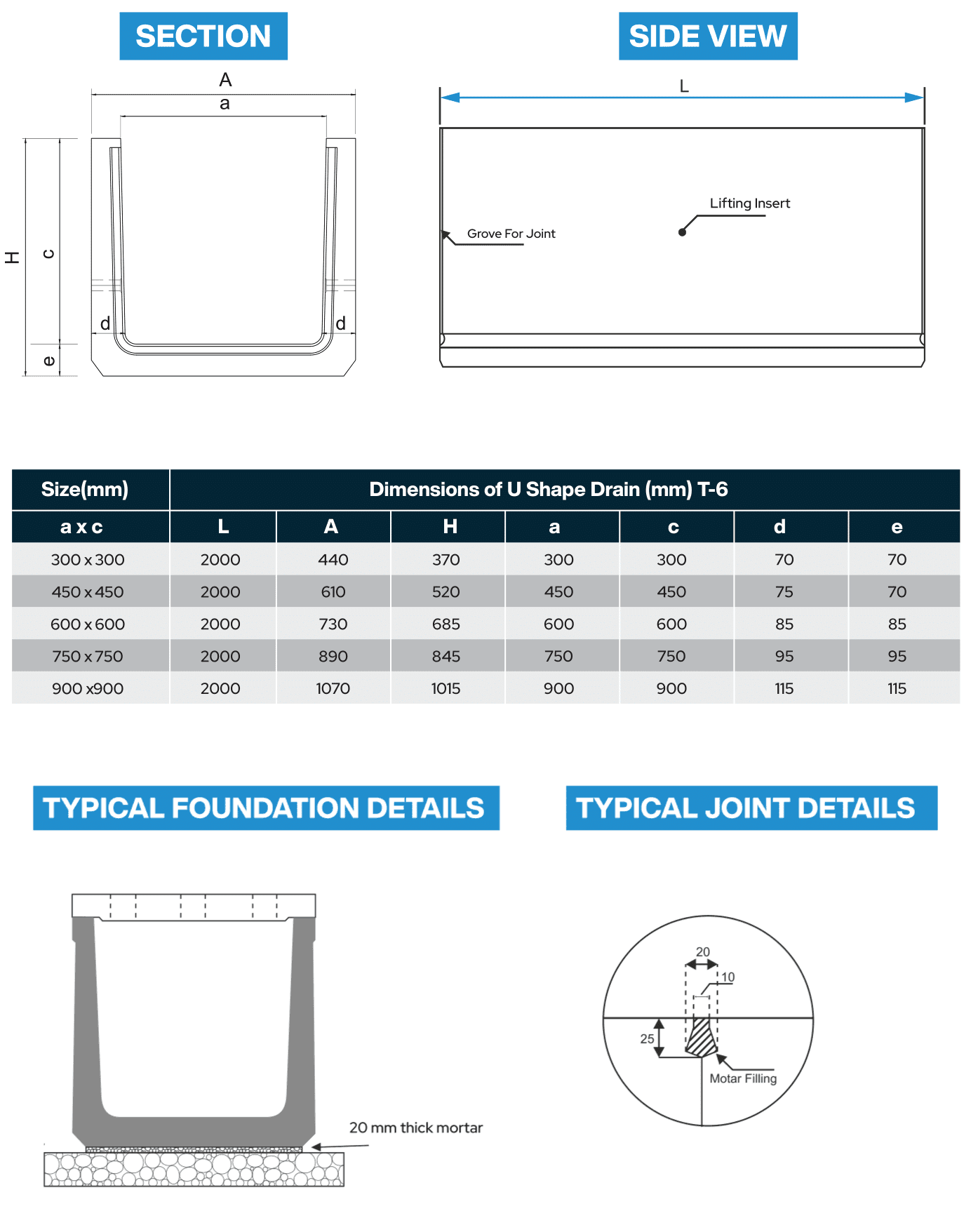

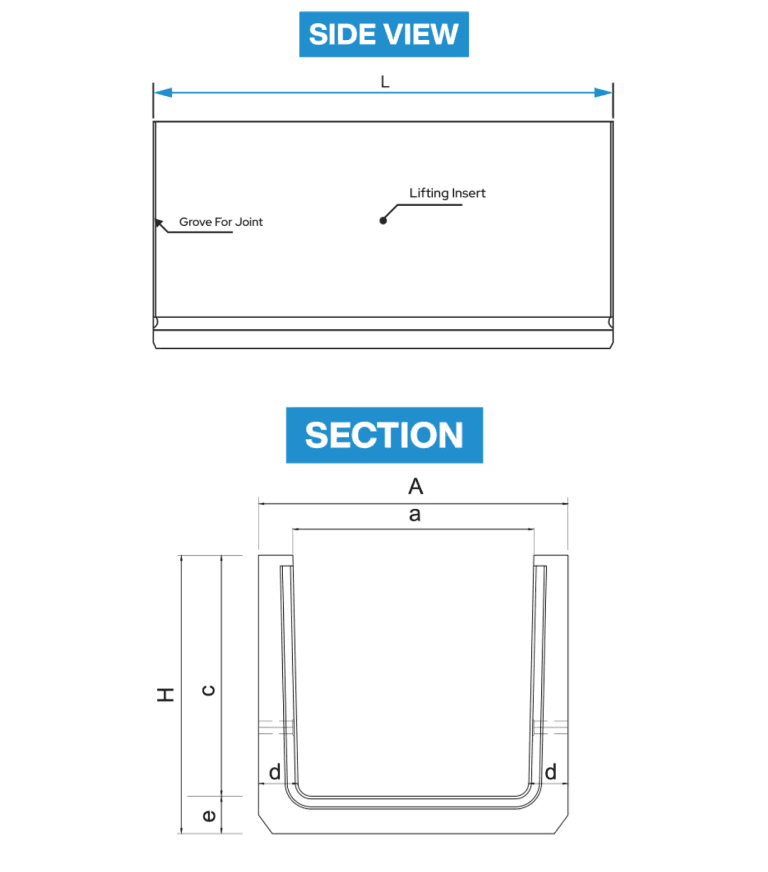

Dimensions of U Shape Drain (mm) T-6
| Size (mm) a×c | Unit length of one precast section (side view, end to end). | Overall outer width of the drain, measured across the top of both side walls. | Overall outer height, from the underside of the base to the top of the side walls. | Clear internal width of the channel at the top, between the inner faces of the side walls (first figure of the nominal size a×c). | Clear internal depth of the channel, from the top of the side walls down to the inside floor (second figure of the nominal size a×c). | Appears to be the side wall thickness, dimensioned near the bottom of the wall just above the base; the inner wall faces taper slightly, so the wall is thinner towards the top. | Base (floor slab) thickness, from the inside floor to the underside of the drain. In every row H = c + e. | Actions |
|---|---|---|---|---|---|---|---|---|
| 300 × 300 | 2000 | 440 | 370 | 300 | 300 | 70 | 70 | 3D |
| 450 × 450 | 2000 | 610 | 520 | 450 | 450 | 75 | 70 | 3D |
| 600 × 600 | 2000 | 730 | 685 | 600 | 600 | 85 | 85 | 3D |
| 750 × 750 | 2000 | 890 | 845 | 750 | 750 | 95 | 95 | 3D |
| 900 × 900 | 2000 | 1070 | 1015 | 900 | 900 | 115 | 115 | 3D |
Note Customized sizes available for mass quantity.
T/02 · 4 rows · mm

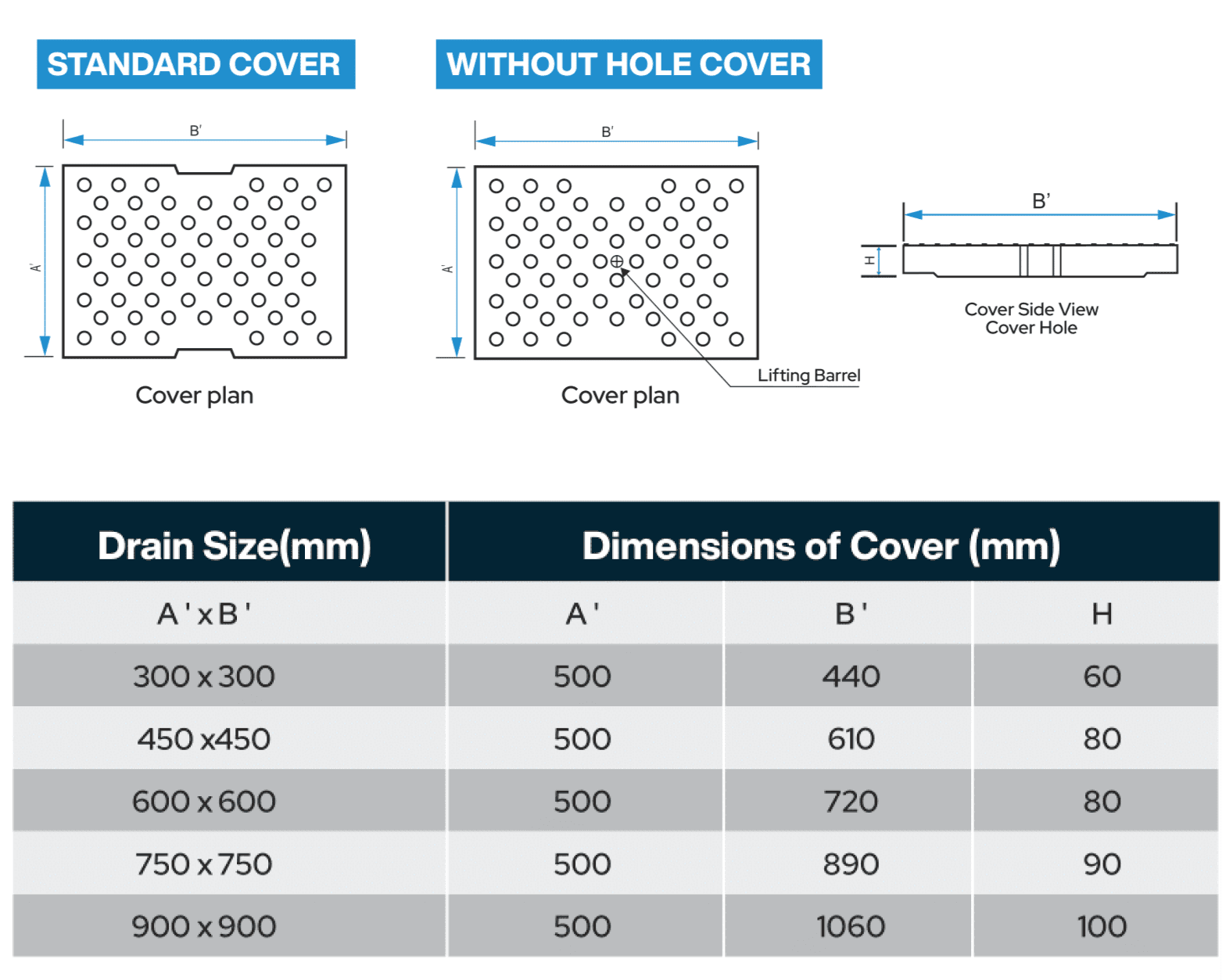

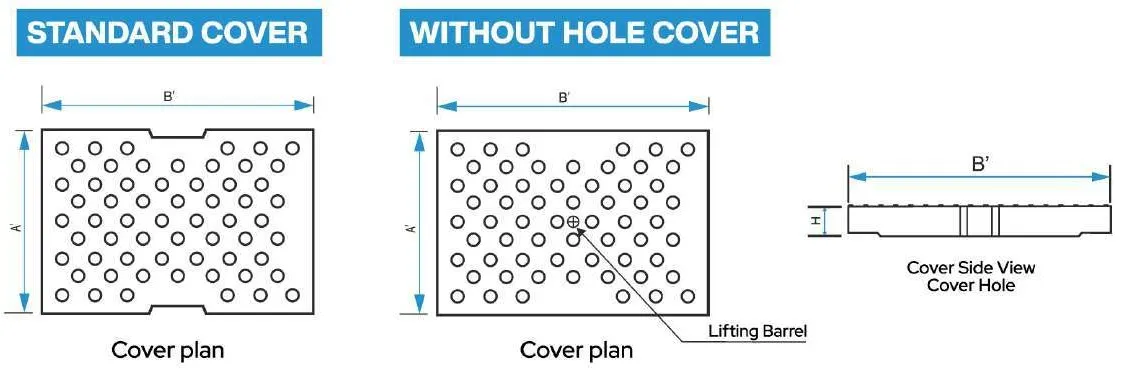

Dimensions of Cover (mm)
| Drain Size (mm) A' × B' | Cover A′: plan dimension of the cover drawn perpendicular to B′; appears to be the length of one cover piece along the drain (500 mm for all sizes). | Cover B′: plan dimension of the cover drawn across the drain (shown again on the cover side view); it appears to span the full outer width of the drain. | Cover H: thickness of the cover slab (cover side view). |
|---|---|---|---|
| 300 × 300 | 500 | 400 | 60 |
| 450 × 450 | 500 | 550 | 70 |
| 600 × 600 | 500 | 720 | 80 |
| 750 × 750 | 500 | 890 | 90 |
Not sure which size?
Waiting for a size
Exact first · then smallest that fits
Enter the clear opening you need.
Every standard T6 U Shape Drain size that fits will appear here, with the number of units for your run.
- U-shape drains

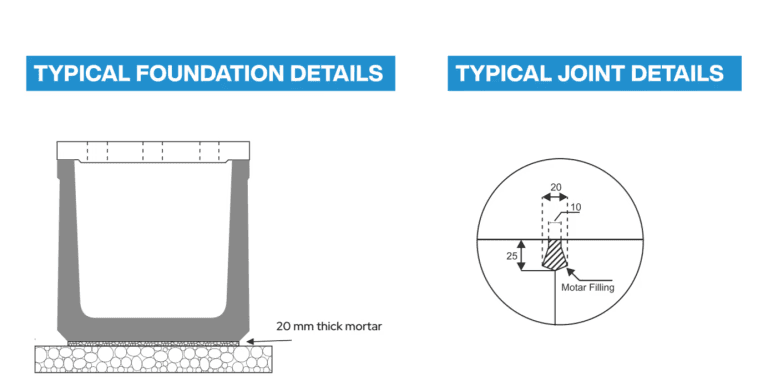

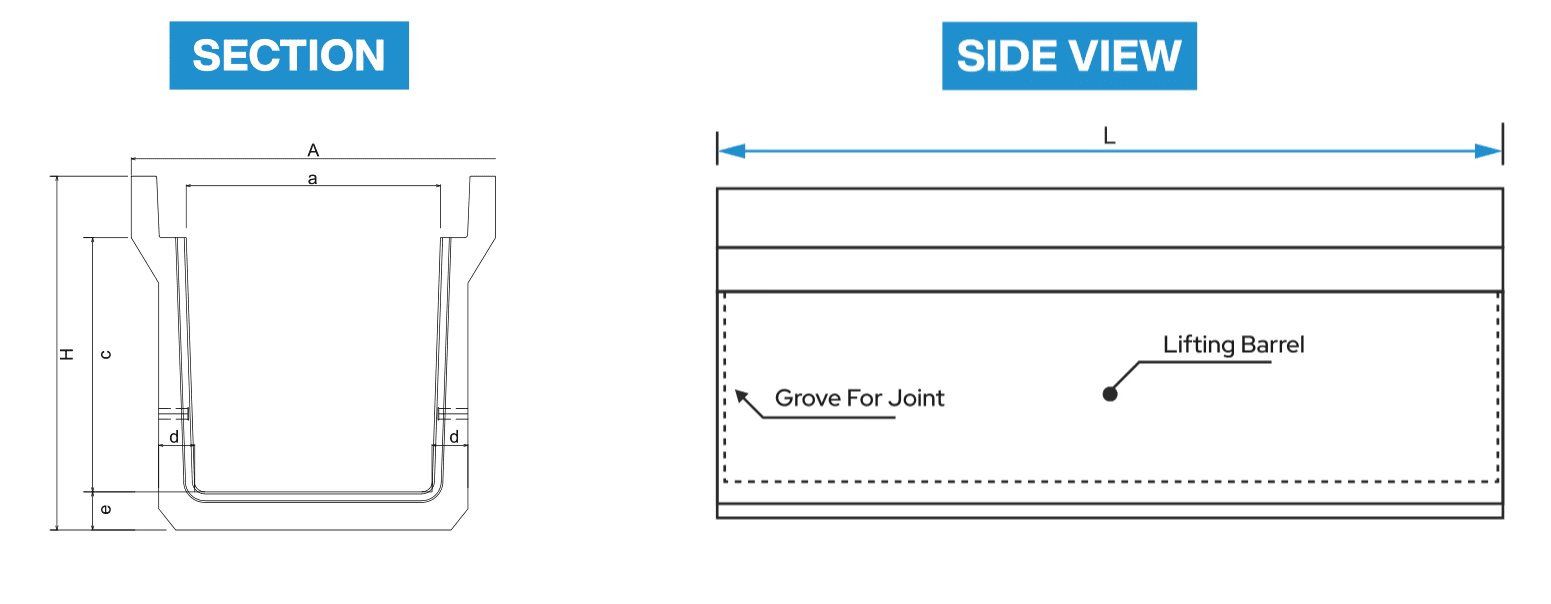

Technical drawings
3 sheets. Open any sheet to zoom into the details.
Our proven workflow
- Step 1
Design and planning
- Step 2
Precision machining
- Step 3
Final Inspection & dispatch
T6 — questions, answered
Size range: 300×300 mm to 900×900 mm. The dimension table lists 5 standard sizes (mm): 300 × 300, 450 × 450, 600 × 600, 750 × 750 and 900 × 900.
Each precast unit is 2000 mm long (L = 2000 mm), so a 100 m run takes 50 units.
Typical applications: Storm water drains; Power and telecommunication cable ducts.
